Features

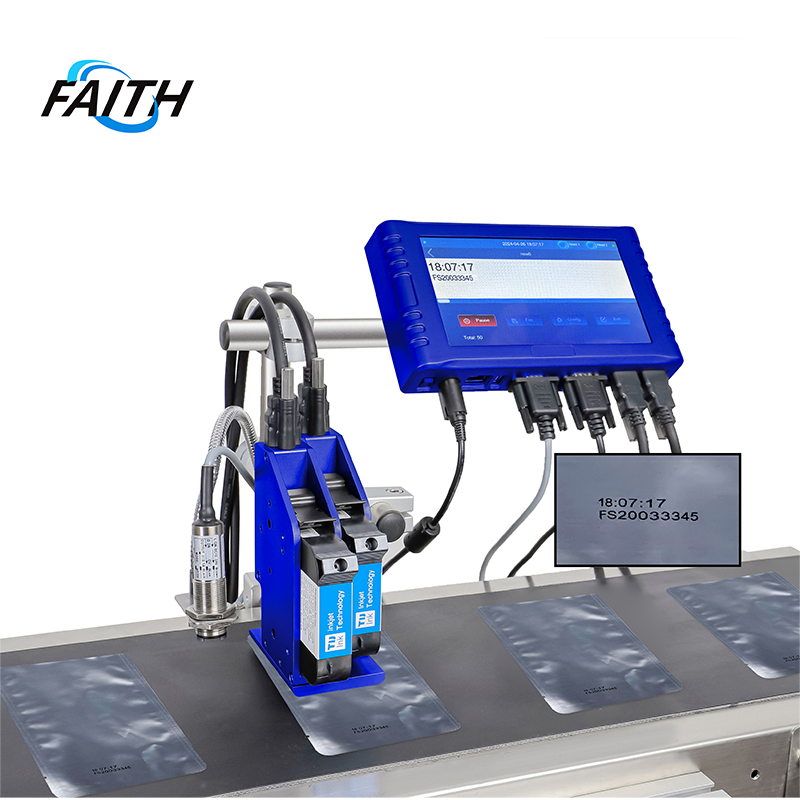

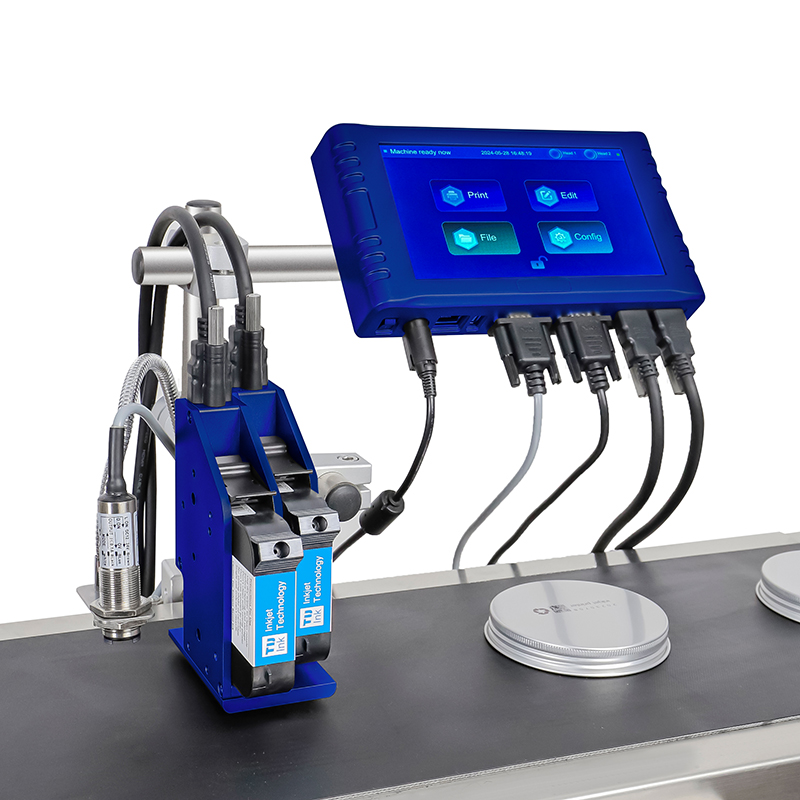

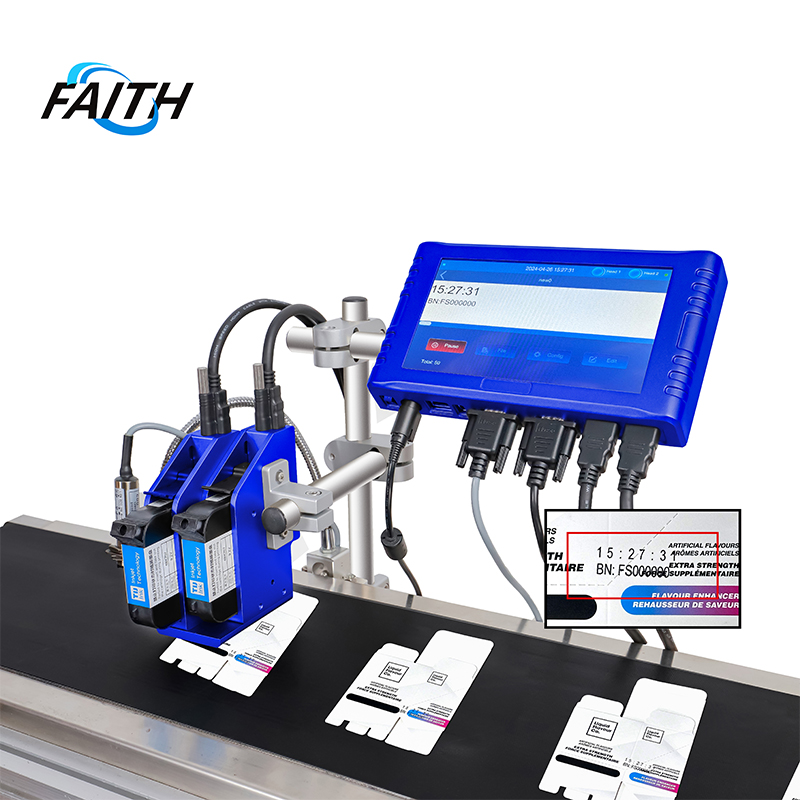

KD260E seamlessly integrates the ease of operation and versatility of online inkjet printers

We have carefully streamlined the functions of the product to make it reasonably concise and suitable for a wide range of industrial applications.

The product adopts a high-performance industrial-grade Cortex-A7 1.2GHz dual-core processor.

Equipped with a proprietary print engine algorithm.

Equipped with an industrial-grade FPGA chip, the motherboard has strong anti-interference ability.

Hardware interfaces include USB, serial port, alarm light, optical sensor and encoder, suitable for various environments.

Running on a stable and efficient Linux intelligent operating system, it supports dynamic print management and traceability system.

The maximum resolution is 300 DP, and single-head or dual-head printing can be selected.

The new Uiexperience has a simple interface and more efficient operation.

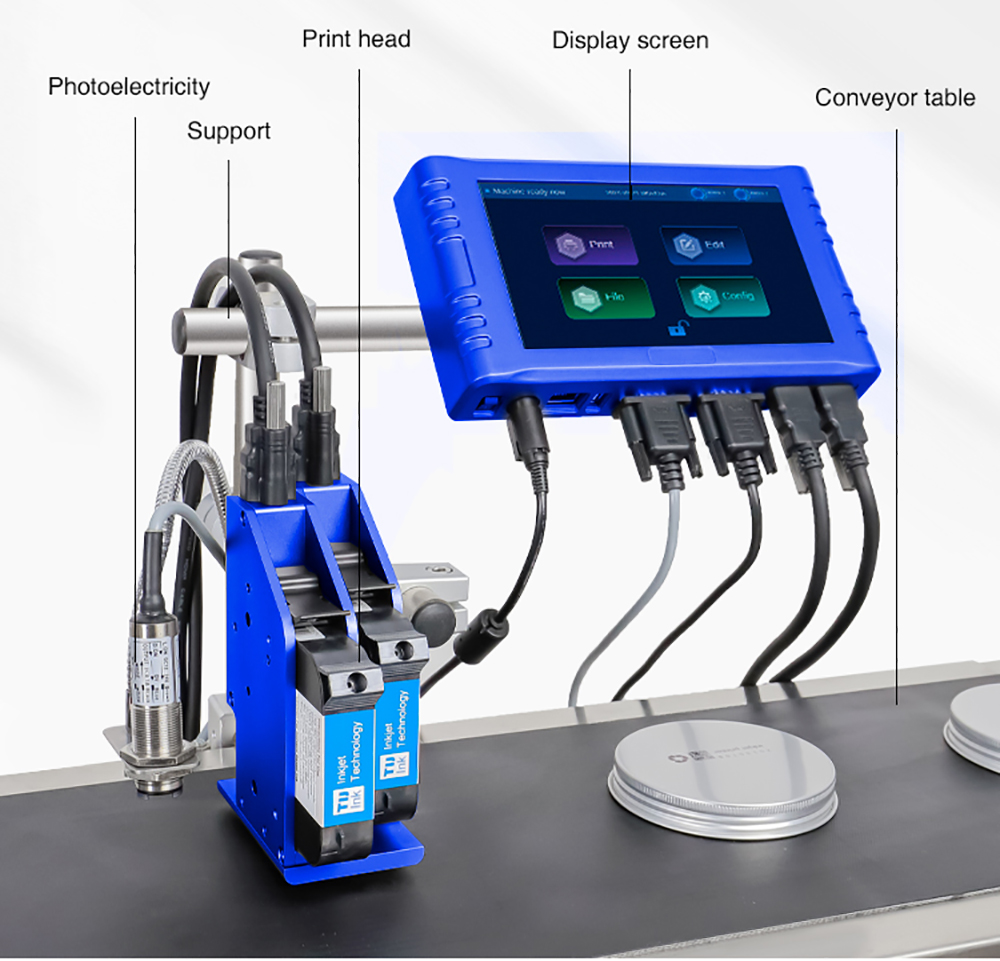

Product Detail

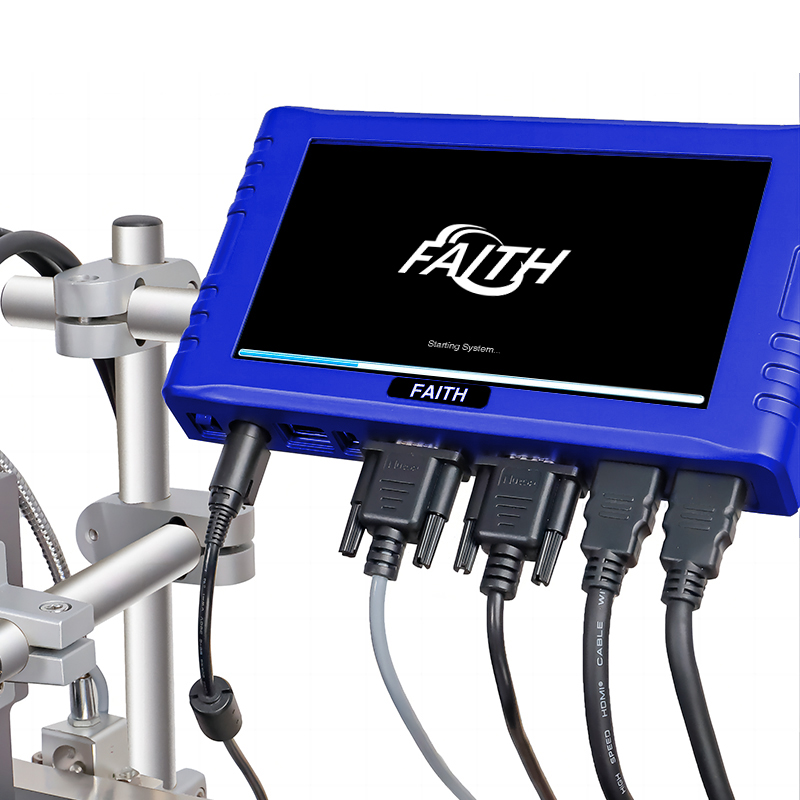

	7-inch high-sensitivity touchscreen clear and visible high sensitivity

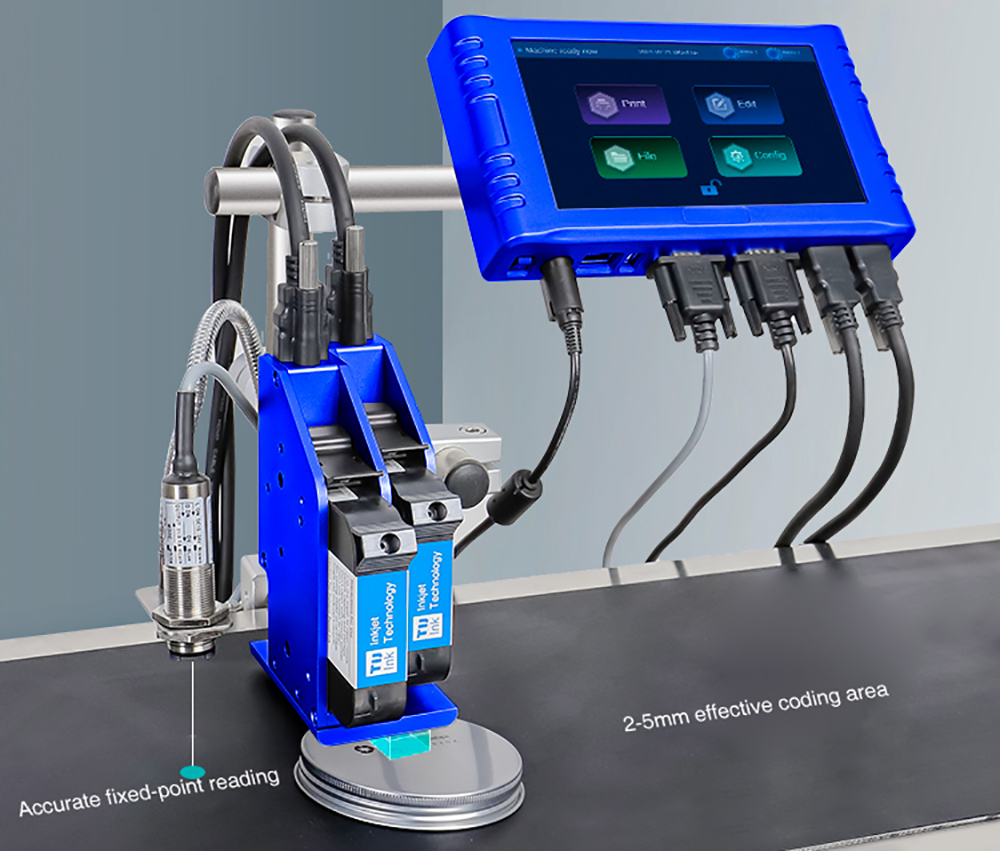

	High resolution, high speed printhead, one code for each object, more accurate

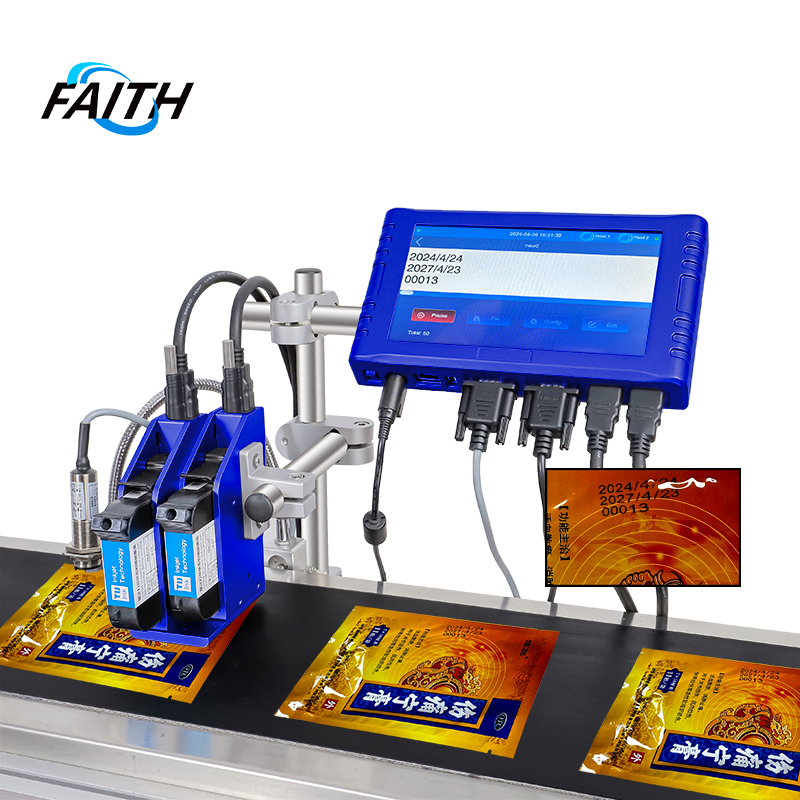

	300-600DPI high-precision printing, dynamic real-time information capture, fast coding without deformation, each code position is clearly identifiable

Printing Accuracy	150 dpi low resolution and 300 dpi high resolution optional Adjustable print grayscale 1-6
Printing Height	Minimum printing 1mm, maximum printing height 25.4mm (optimal distance between nozzle and printing surface 1-2mm)

Ink Type	42ml food-grade/water-based/oil-based/weak solvent/solvent ink cartridges, large-capacity ink bags for continuous supply systems
Ink Colors	Black, white, red, yellow, blue, green, invisible
Running-in Chip	LED non-contact chip automatically identifies ink parameters and records remaining ink volume
Operating System	Embedded Linux Operating System
Main Hardware	Cortex-A7 1.2GHz Dual-core Processor, FPGA Algorithm Acceleration Chipset
Communication interfaces	USB, RS232, Ethernet
External Interfaces	Optical Eye, Encoder, Alarm Light
Power Supply Parameters	Power Adapter with 100-240V AC Input, 30V 3A DC Output
Machine Material	Industrial-grade Standard Protective Body (Aerospace-grade Aluminum)

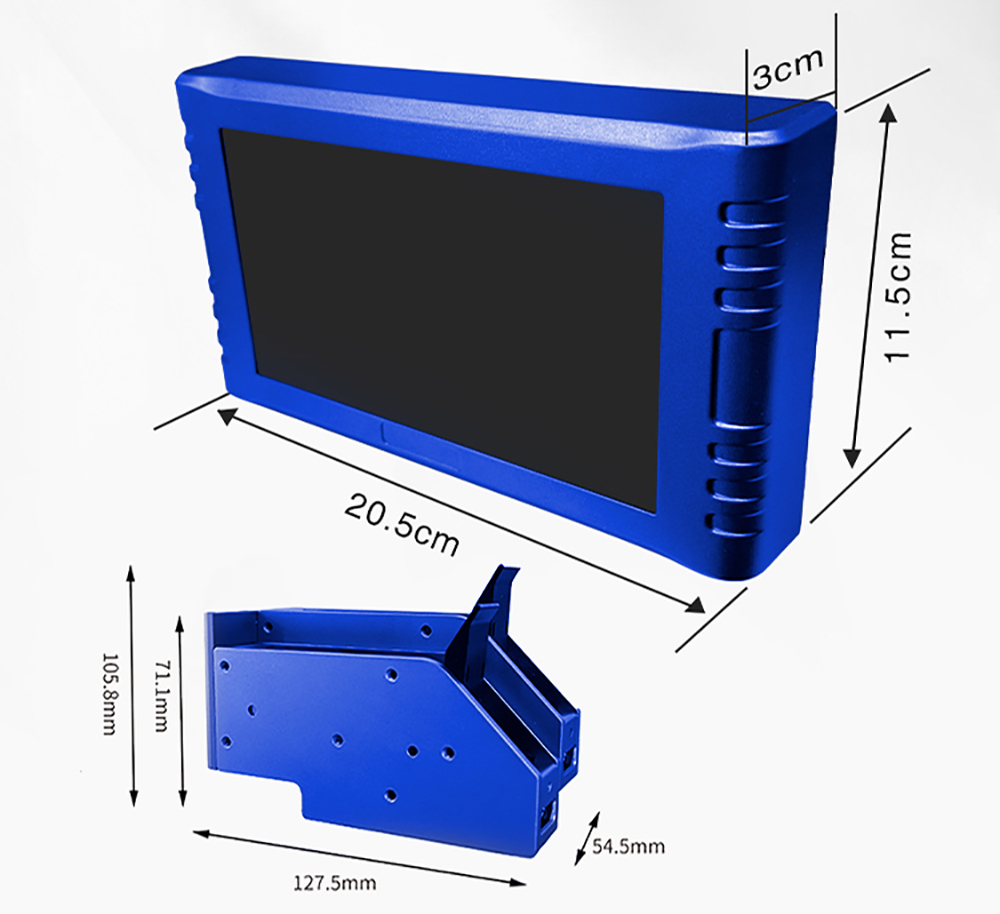

Machine Specifications	206mm118mm32.6mm
Operating Environment	Temperature 0-45°C / Humidity 30-70% RH

Online inkjet printers are widely used in industries such as food, medicine, daily necessities, industrial manufacturing and logistics, mainly used to mark information such as production date, batch number and barcode. These devices can print on a variety of materials, such as paper, plastic, metal, glass and composite materials, to meet the needs of different products. Online inkjet printers can print text, barcodes, QR codes, simple graphics and logos to ensure the accuracy and compliance of product information. Through efficient and clear marking.

Best TIJ Online Printer

Download Brochures

Machine

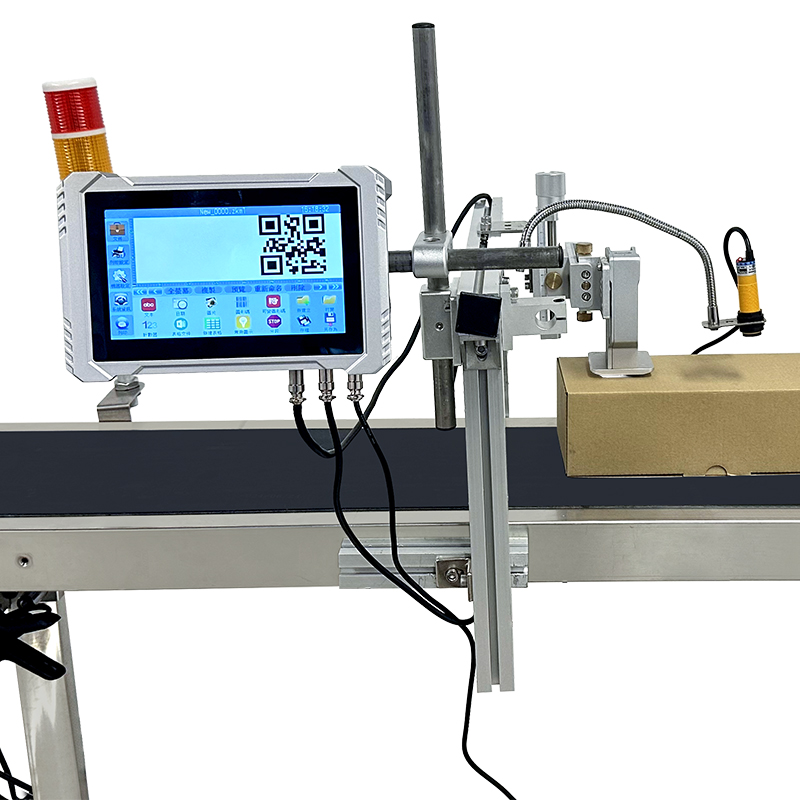

Model	KD486	KD260-E(Black/Blue available)	KD210
Printing Speed	0-110M/min	0-60M/min	0-508M/min
Printing Accuracy	600dpi	300DPI	600DPI
Size	21535140MM	20611832.6MM	274165.488MM
Printing Height	2-12.7mm or 2-25.4mm (higher printing height can be customized)
Supported Languages	Support 28 languages, including Chinese, English, Arabic, Turkish, etc.	Support more than 40 national languages, one-click switching
Printing Content	Can print date, text, batch number, QR code, logo, etc.
External Interface	Power interface, encoder interface, sensor interface, USB interface, HDMI interface	Photocell, encoder, warning light	Photo eye/encoder/alarm control output/serial number output/external serial number reset/external serial number update/external printing information selection/flip control/printer connection port
Power Adapter	60W/12V	Power adapter 100-240V AC input, 30V3A DC output	Power supply 110-230V AC input
