Features

Stainless steel valve body, IP55 grade stainless steel valve body can better adapt to various complex working environments

High-precision nozzle, the nozzle adopts a portable disassembly and assembly structure design, which is easy to replace and clean

Adopting a 10.1-inch ultra-large touch screen, multiple national language operation interfaces can be selected at will, the operation panel tilt angle is scientific and reasonable, and it conforms to ergonomic design, bringing a more superior operation experience. At the same time, the operation interface function layout is clear and reasonable, and the operation is simple and convenient, and the printing status and content can be monitored in real time.

360° rotating nozzle

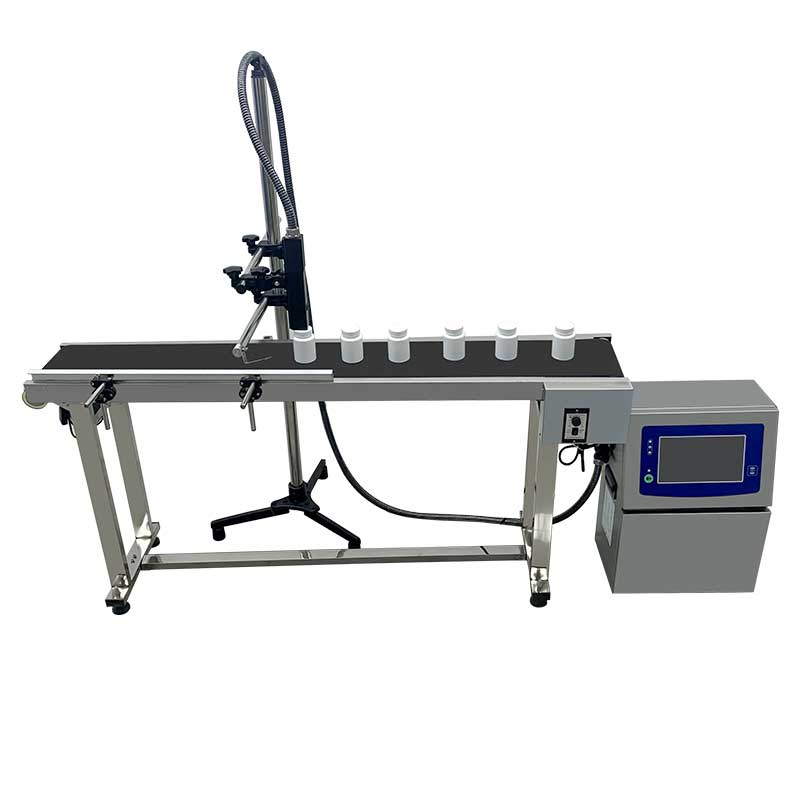

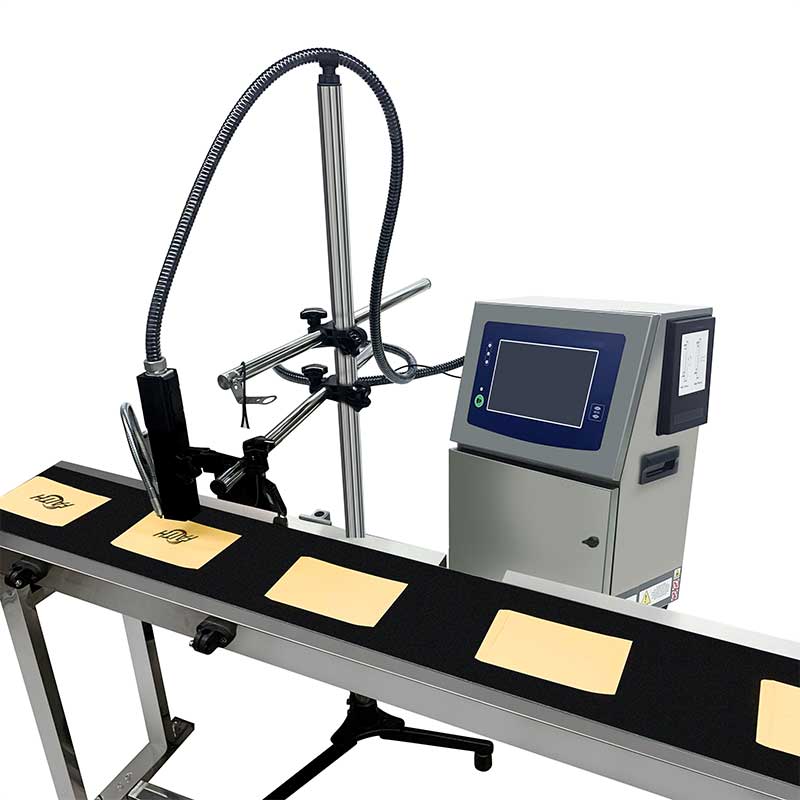

Various text layouts can be set with one key to accurately optimize the nozzle 360° rotatable and can be flexibly adjusted for assembly line operations

Product Detail

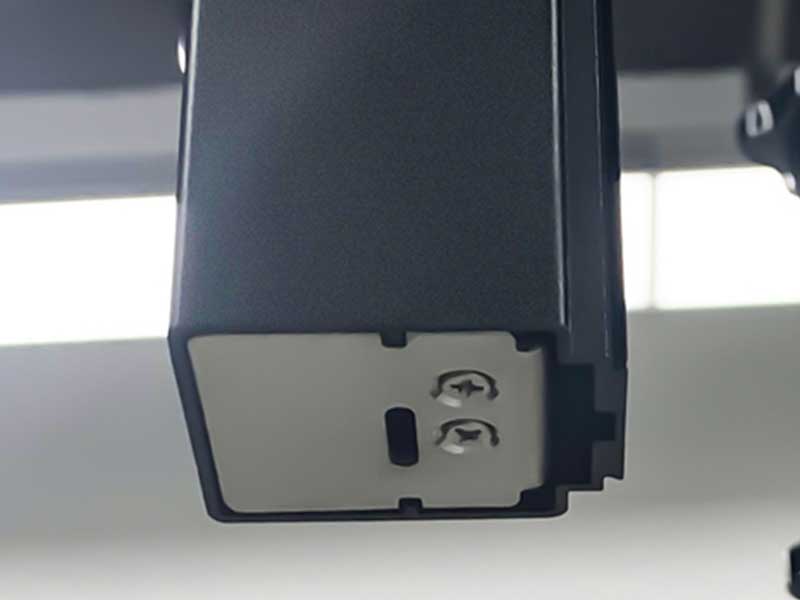

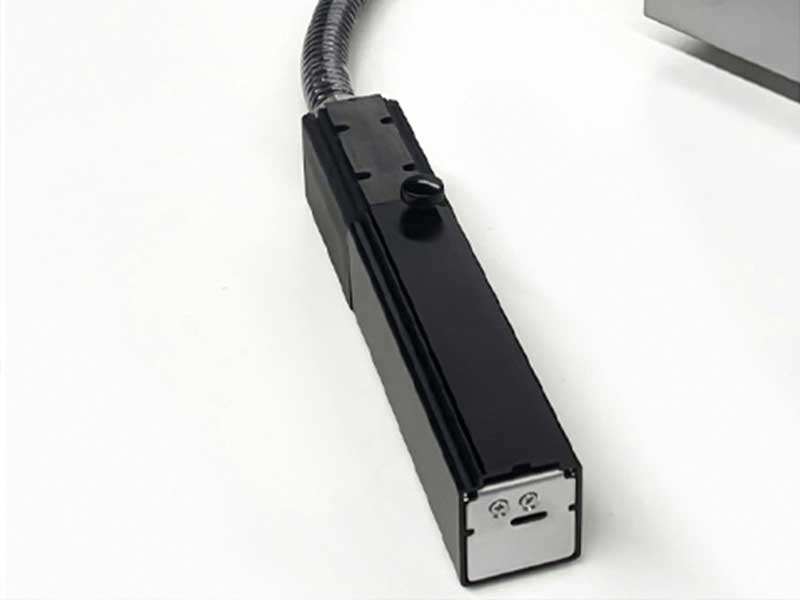

	Print nozzle disassembly structure design, easy to replace and clean

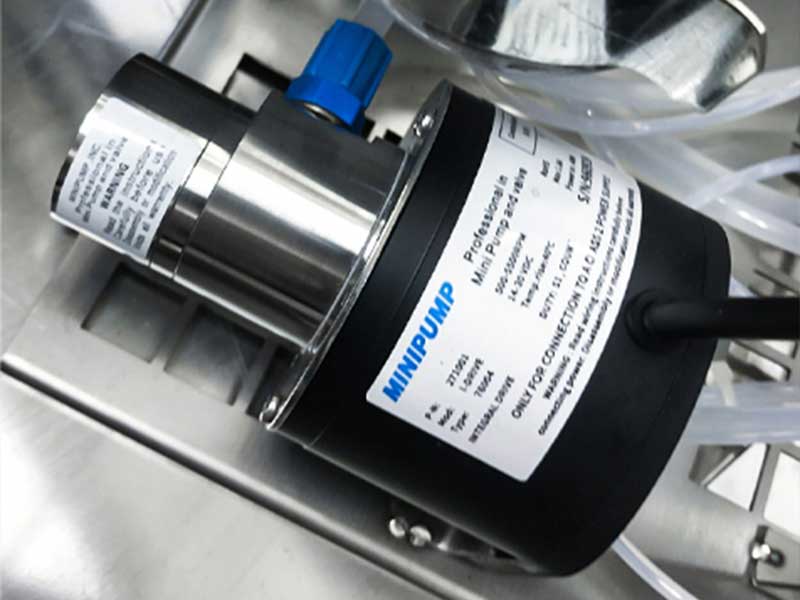

	Single head Gear pump + diaphragm recovery Pump design, low consumption
	Automatic print head cleaning and reverse nozzle cleaning function

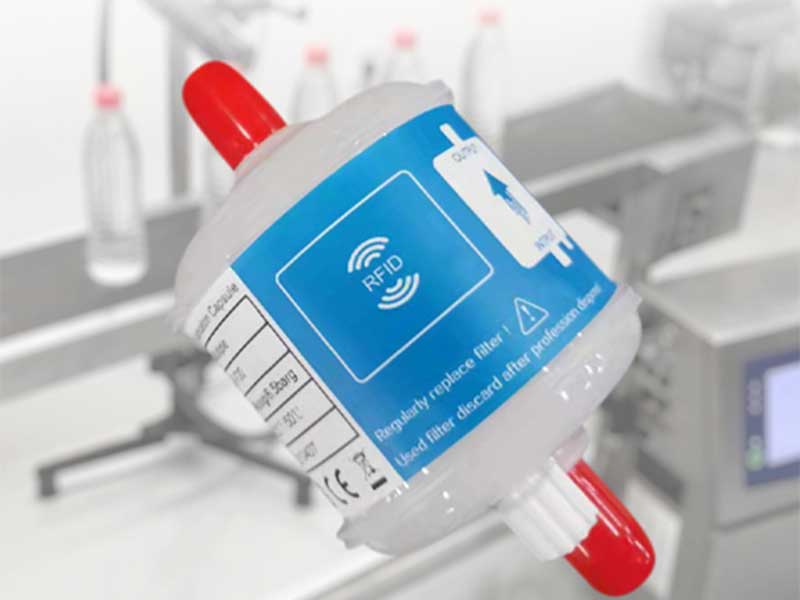

	Regularly remind you to replace the filter to avoid filter blockage, unstable machine operation, etc.
	Integrated modular system avoids filter clogging and machine operation instability

Print head pipeline	3m/6m
Nozzle specifications	Nozzle specifications 40u, 50u, 60u, 75u
Printing height	2~20mm
Printing distance	3~30mm
Printing lines	1~5 lines
Printing speed	576m/min
Counter	More than 20 independent counters
Ink color	Black, red, blue, green, white, invisible
Ink type	High adhesion, anti-migration, high temperature resistance, glass-specific, breathable, food grade, oil resistance
Font	5x6L 7x6L 7x10L 9x8L 9x11L 11x11L 12x12L 16x16L 24x24L 32x32L 11x11B 12x12B 16x16B 24x24B 32x32B

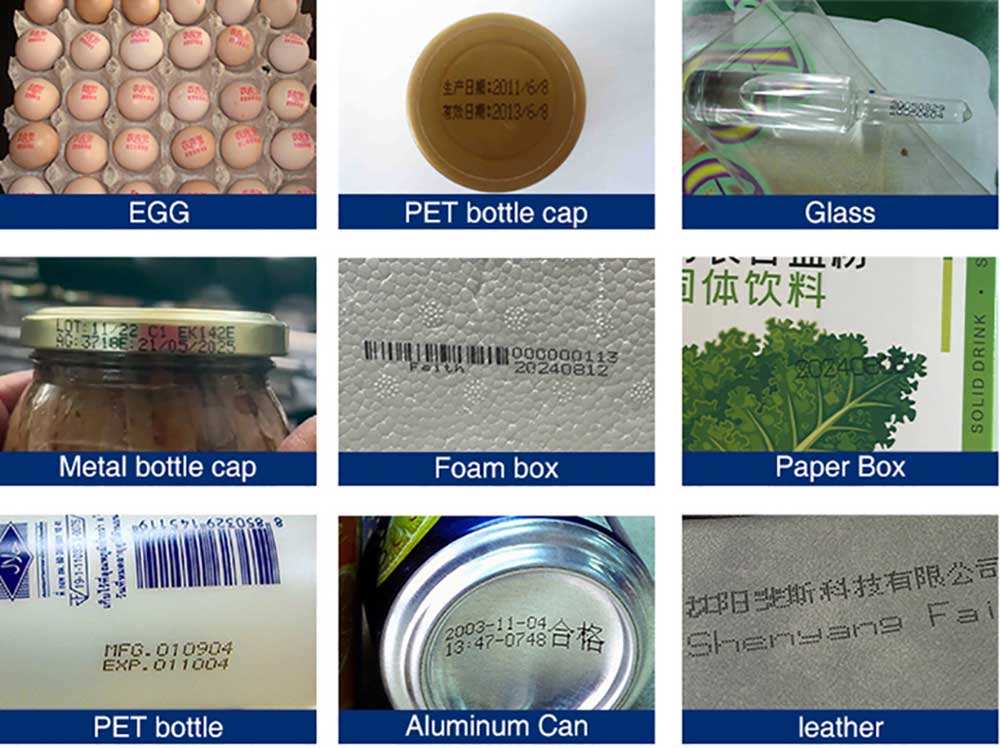

Printing material	Cartons, plastics, metals, plates, pipes, stones, cables, glass, electronic components, auto parts, industrial chemical packaging, food, gift boxes
Printing content	Text, time, date, logo, dynamic barcode/QR code, dynamic serial data, dynamic database (other content can be added as needed)
Operating system	Embedded Linux security operating system
Display screen	10.1-inch color display, industrial touch screen
Communication interface	Network interface, USB, RS232
Protection level	IP55
Power supply parameters	Input 100-240V AC
Rated power	150 watts
Motherboard memory	256 megabytes
Machine material	Machine material 304 stainless steel
Machine specifications	400mmx250mmx550mm (length x width x height)
Working environment	Temperature 0-45℃/humidity 30-70%Rh
Related certifications	Restriction of Hazardous Substances Directive, CE, Federal Communications Commission
Net weight	22 kg

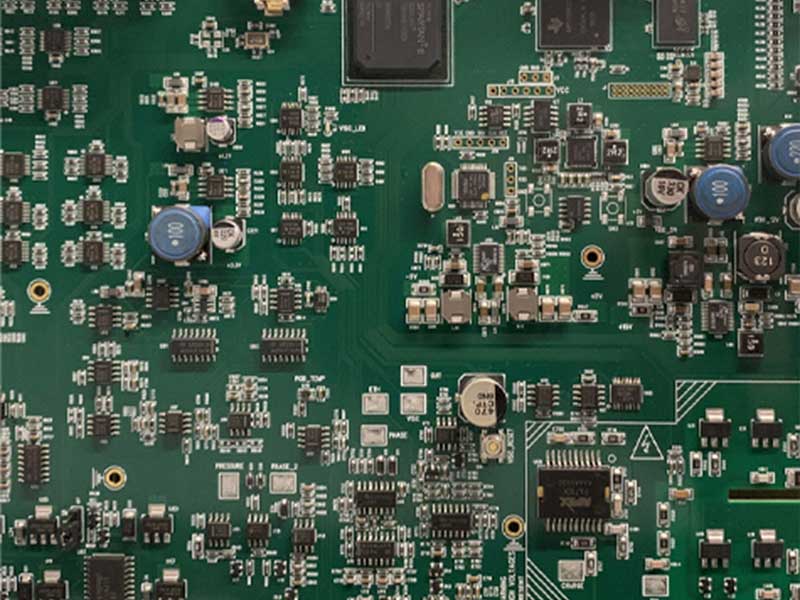

Main hardware	US TI AM3358 industrial-grade CPU, US Xilinx, Spartan7 industrial-grade FPGA
External interface	Photoeye, encoder, reverse and inverted control, external interface signal light alarm output, serial number output control, external printing information selection and information inversion

CIJ printers (continuous inkjet printers) are suitable for a variety of materials such as plastics, metals, glass, paper, rubber, etc., and can print production date, shelf life, batch number, barcode, QR code, brand LOGO, etc. Its advantages include high speed, high precision, non-contact printing, environmental protection and safety, strong flexibility and easy integration. It supports variable data printing to meet personalized needs and is widely used in food, medicine, electronics, packaging and other industries.

Continuous Inkjet Printing On Plastic

Download Brochures

Machine
Model	Model:FBP002	Model: FBP001
Material	Machine material 304 stainless steel
Printing Performance	1-5 lines 411M/min	1-5lines 576M/min
Font Matrix	56L、76L、710L、98L、911L、1111L、1212L、1616L、2424L、3232L、1111B、1212B、1616B、2424B、32*32B
Printing Distance	3-30MM
Operating System	Embedded Linux security operating system
Print Content	Text, time, date, Log0, dynamic barcode/QR code, dynamic serial data, dynamic database (other content can be added as needed)
Supported Languages	More than 40 national languages (Chinese, English, Arabic, Danish, German, Italian, Korean, etc.)
Memory Storage	Network interface USB.RS232
Industrial Protection	IP55
Printhead	Tube 3M/6M Nozzle 40u, 50u, 60u, 75u	Tube 3M/6M Nozzle 40u, 50u, 60u, 75u,85u
Printing Direction	360° rotating nozzle
Temperature/ Humidity range	Temperature 0-45°C/Humidity 30-70%Rh
Power Parameters	Input 100-240V AC
