Product Videos

Features

Eight Recommendations

One-touch start/stop for precise control
10.1-inch large screen for easy operation
Automatic cleaning to prevent clogs
Anti-counterfeiting and traceability data printing
Real-time calculation of printing costs
Wireless keyboard and mouse control
GS1 international pharmaceutical monitoring code
Printing speed can reach up to 576 m/min

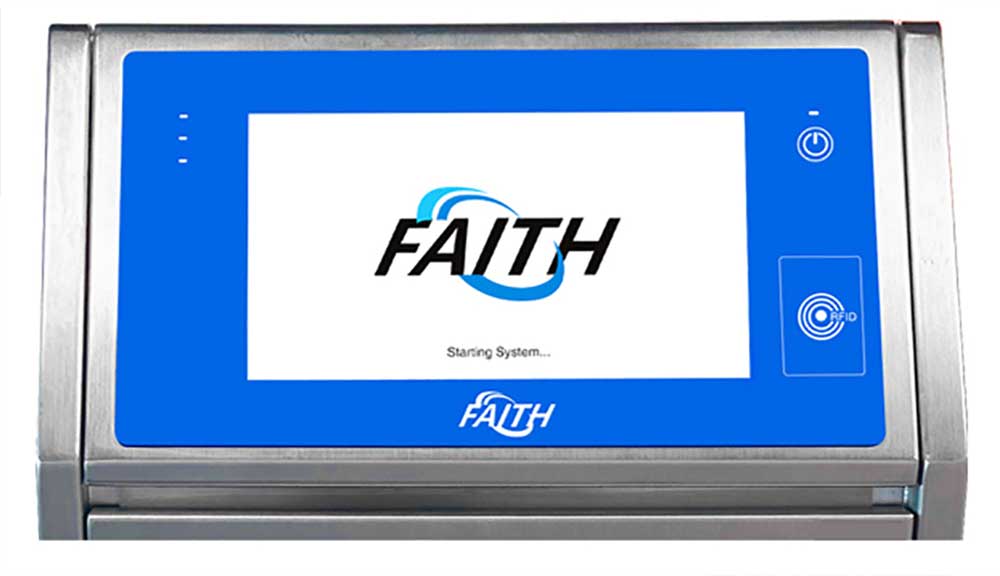

Display Screen

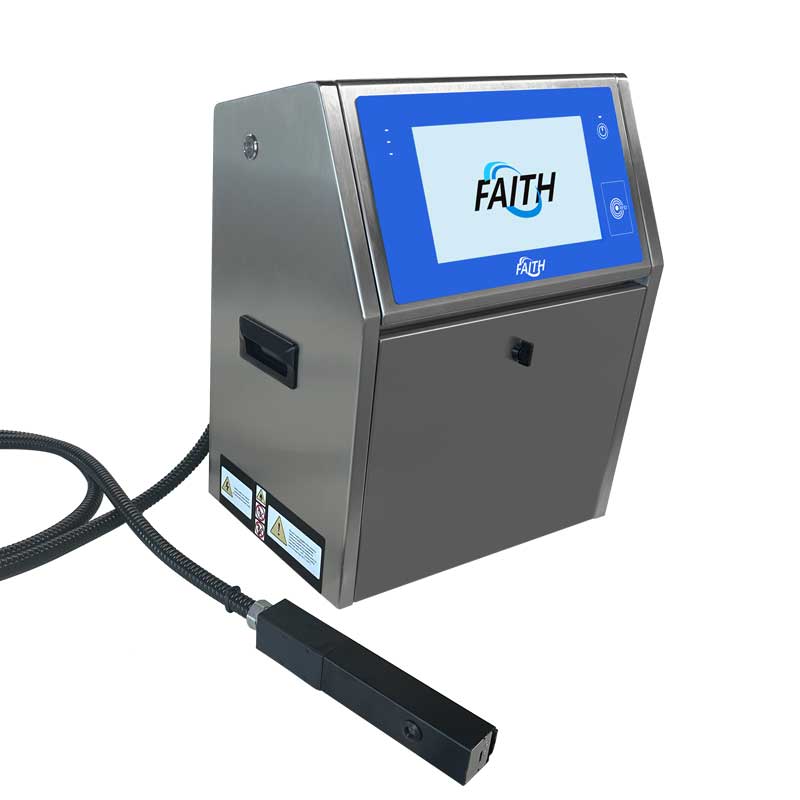

FAITH's Latest Customized Continuous Inkjet Printer

Featuring a 10.1-inch touchscreen with a clear and intuitive interface,it offers easy operation, real-time monitoring of printing status, and supports custom logos

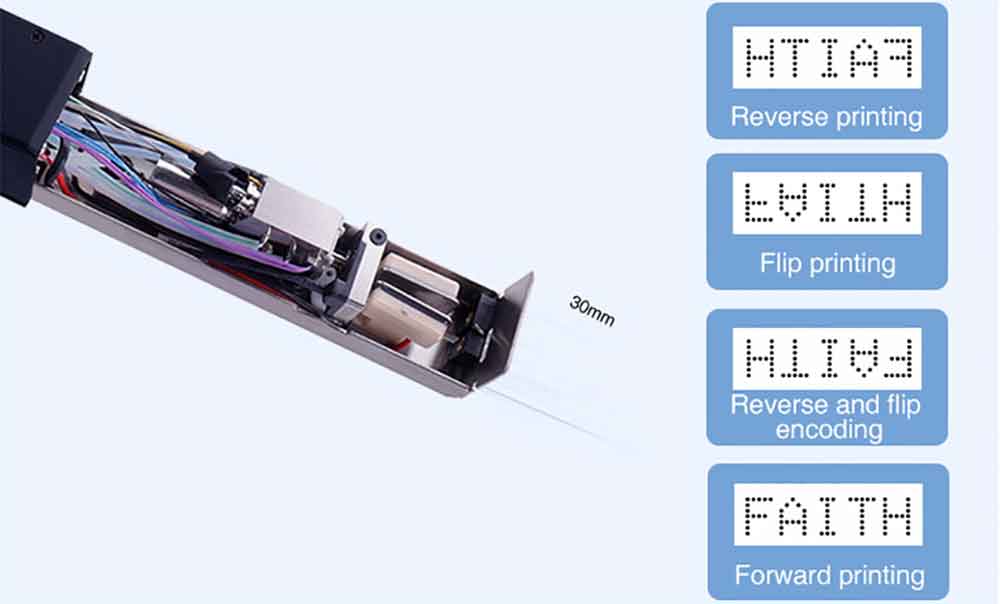

High-Precision 360° Rotating Nozzle

The print head features a portable, detachable design with an assembly structure,making it easy to replace and clean. The maximum printing distance can reach up to 30 millimeters.

Product Detail

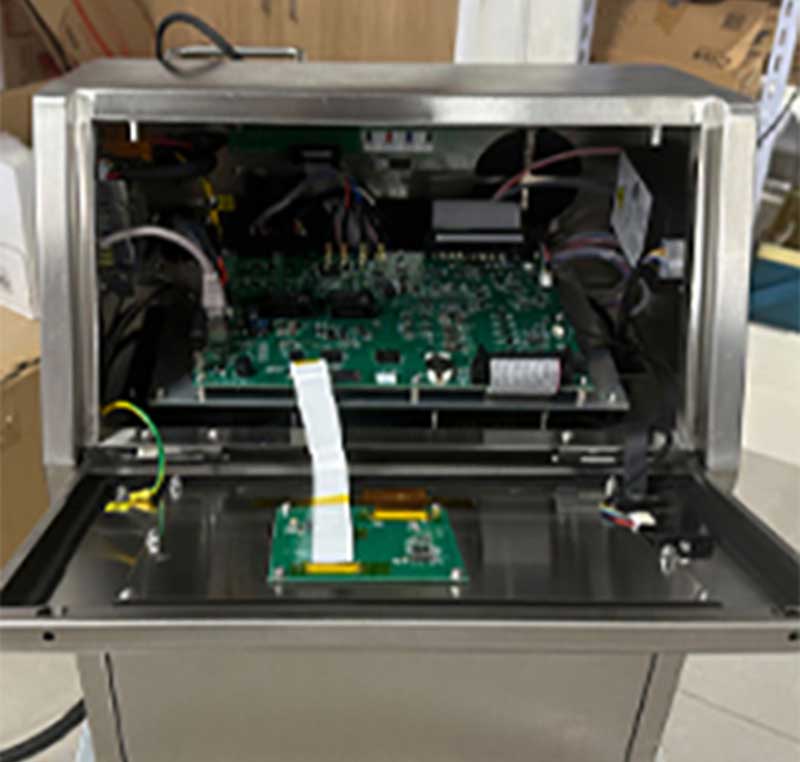

Main Hardware

The main board with newest structure has superior performance of function and stability. and the EHT is dustproof and waterproof, better to deal with the harsh and complex environment.

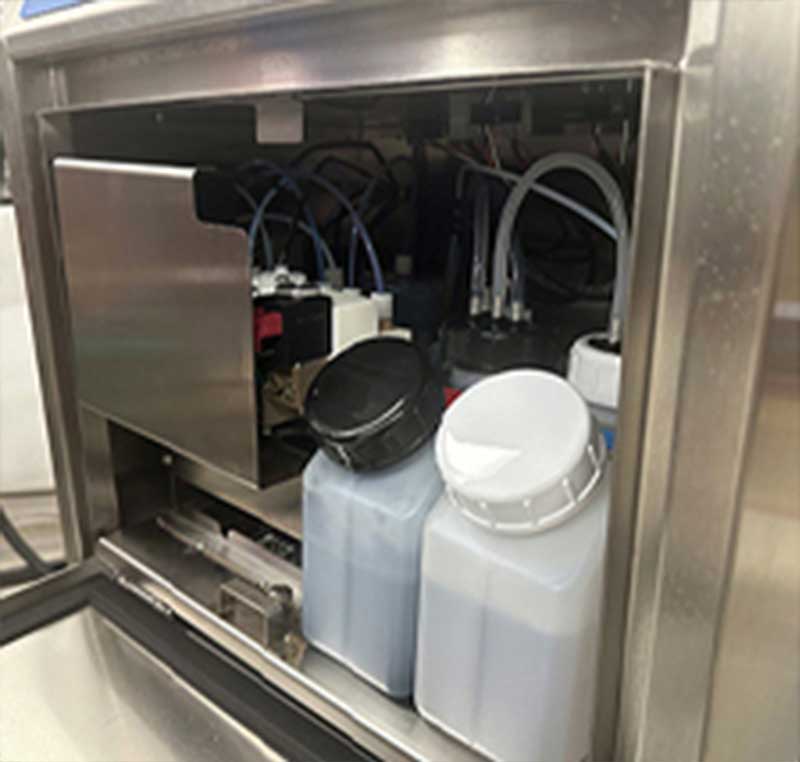

Ink System

Double-head pump design makes more stableand durable. White ink machine has doublemixing system to prevent the pigment ink precipitation.

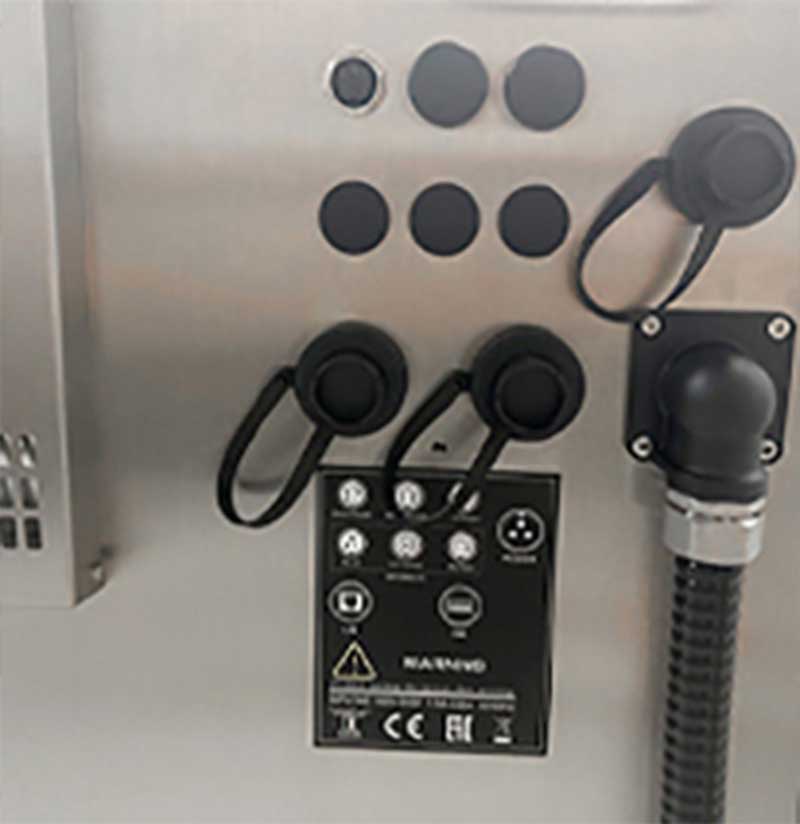

External Interfaces

IP68,RS232,network interface,counter reset,information control and other functions.

Operating System	Embedded Linux secure operating system
Display	10.1-inch color display, industrial touchscreen
Communication Interfaces	Network interface.USB.RS232
Machine Material	304 stainless steel
Operating Environment	Temperature 0-45°C/Humidity 30-70% RH
Main Hardware	American Tl AM3358 industrial-grade CPU,American Xilinx Spartan7 industrial-grade FPGA
External Interfaces	Light sensor,encoder,reverse and inversion control.external interface signal light alarm output,serial number output control, external print information selection and information inversion
Supported Languages	Supports over 40 languages (including Chinese,English,Arabic,Danish,German,Russian,French、Finish,Korean,Japanese,Spanish,ltalian,etc.)

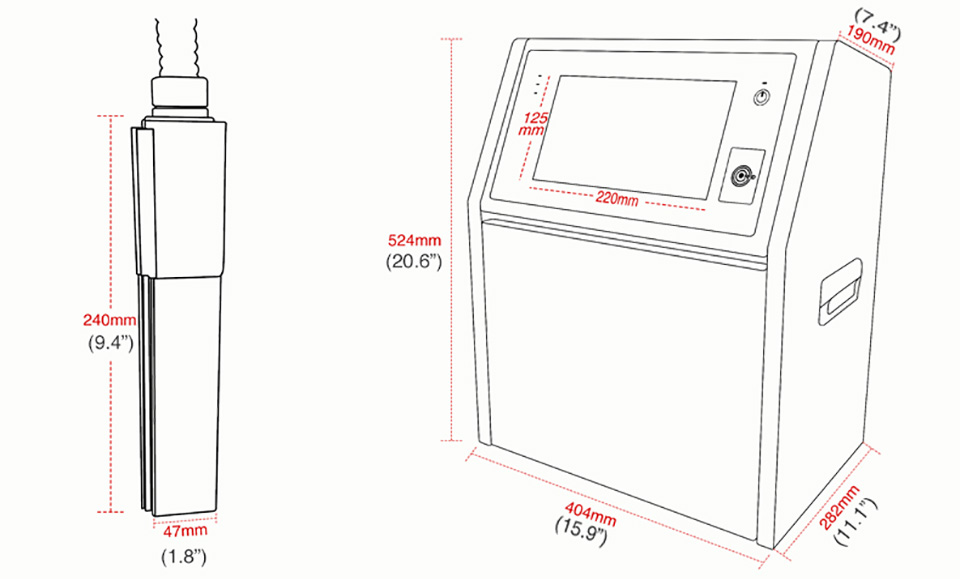

Product Specifications

Continuous Inkjet Printers Print Cables And Pipes

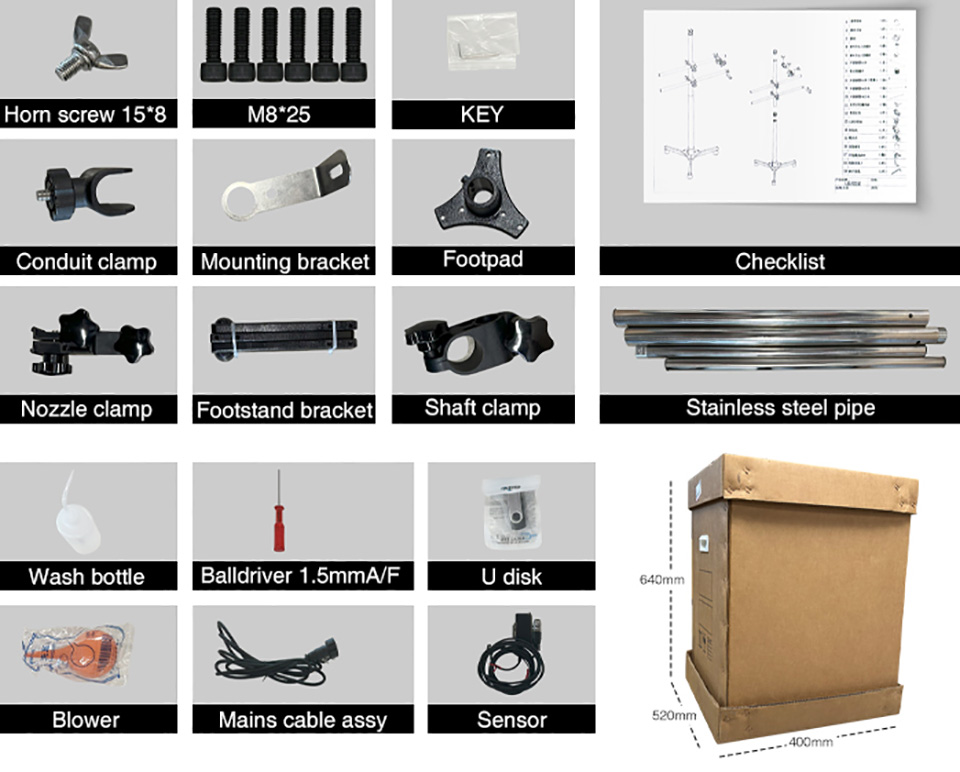

Packing List

Continuous Inkjet Printers Print Cables And Pipes

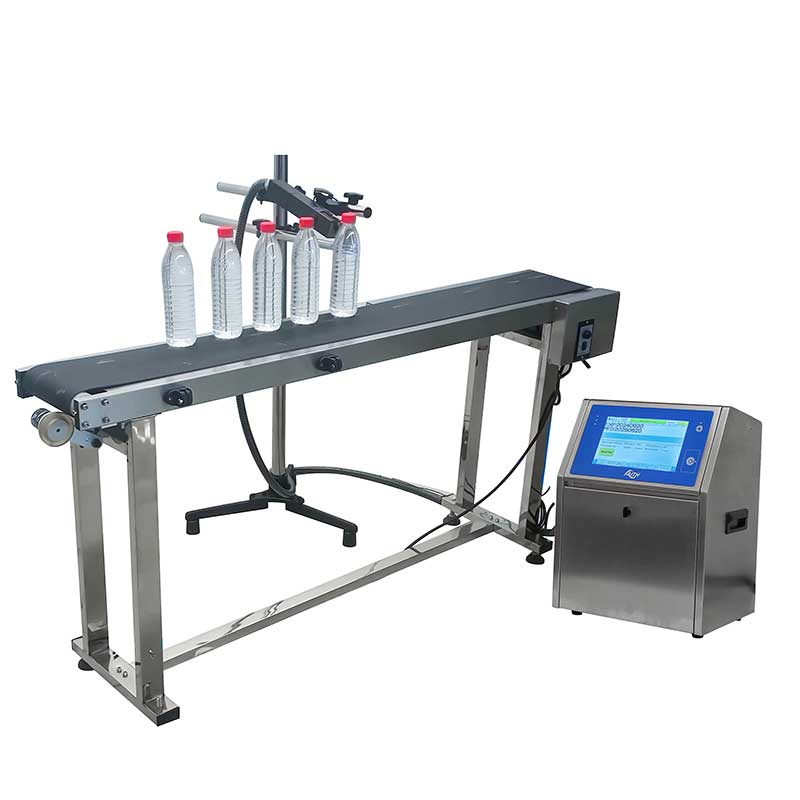

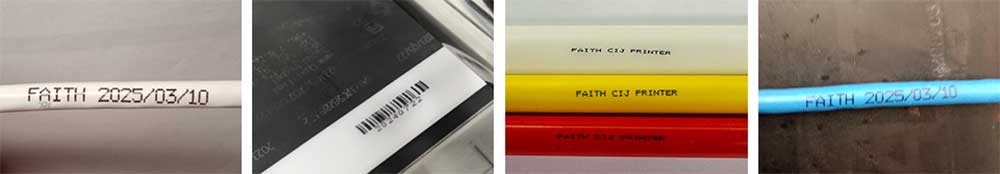

CIJ printers play an important role in the cable and pipe industry. They are mainly used to print key information such as product model, specification, production date, batch number, traceability code and brand logo. Its high precision and high speed make it easy to integrate into high-speed production lines. It is suitable for a variety of materials such as PVC, PE, and metal. High adhesion ink is used to ensure that the label is long-lasting and clear during transportation and use.

Continuous Inkjet Printers Print Cables And Pipes

Download Brochures

Machine
Model	Model:FBP002	Model: FBP001
Material	Machine material 304 stainless steel
Printing Performance	1-5 lines 411M/min	1-5行 576M/min
Font Matrix	56L、76L、710L、98L、911L、1111L、1212L、1616L、2424L、3232L、1111B、1212B、1616B、2424B、32*32B
Printing Distance	3-30MM
Operating System	Embedded Linux security operating system
Print Content	Text, time, date, Log0, dynamic barcode/QR code, dynamic serial data, dynamic database (other content can be added as needed)
Supported Languages	More than 40 national languages (Chinese, English, Arabic, Danish, German, Italian, Korean, etc.)
Memory Storage	Network interface USB.RS232
Industrial Protection	IP55
Printhead	Tube 3M/6M Nozzle 40u, 50u, 60u, 75u	Tube 3M/6M Nozzle 40u, 50u, 60u, 75u,85u
Printing Direction	360° rotating nozzle
Temperature/ Humidity range	Temperature 0-45°C/Humidity 30-70%Rh
Power Parameters	Input 100-240V AC
