Features

Eight Recommendations

One-touch start/stop for precise control

10.1-inch large screen for easy operation

Automatic cleaning to prevent clogs

Anti-counterfeiting and traceability data printing

Real-time calculation of printing costs

Wireless keyboard and mouse control

GS1 international pharmaceutical monitoring code

Printing speed can reach up to 576 m/min

Product Detail

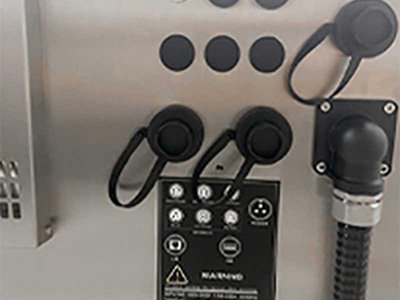

External Interfaces

IP68,RS232,network interface,counter reset,information control and other functions.

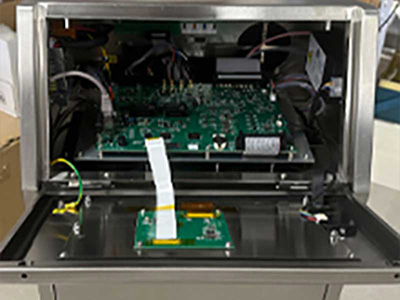

Main Hardware

The main board with newest structure has superior performance of function and stability. and the EHT is dustproof and waterproof, better to deal with the harsh and complex environment.

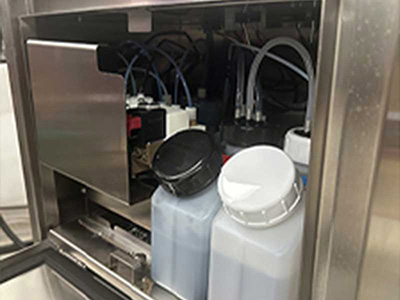

Ink System

Double-head pump design makes more stableand durable. White ink machine has doublemixing system to prevent the pigment ink precipitation.

Operating System	Embedded Linux secure operating system
Display	10.1-inch color display, industrial touchscreen
Communication Interfaces	Network interface.USB.RS232
Machine Material	304 stainless steel
Operating Environment	Temperature 0-45°C/Humidity 30-70% RH
Main Hardware	American Tl AM3358 industrial-grade CPU,American Xilinx Spartan7 industrial-grade FPGA
External Interfaces	Light sensor,encoder,reverse and inversion control.external interface signal light alarm output,serial number output control, external print information selection and information inversion
Supported Languages	Supports over 40 languages (including Chinese,English,Arabic,Danish,German,Russian,French、Finish,Korean,Japanese,Spanish,ltalian,etc.)

CIJ printers are widely used in the plastics industry to print information such as production date, shelf life, batch number, barcode, QR code and brand LOGO, and are suitable for a variety of plastic products such as PET bottles, PVC pipes, PP/PE packaging bags, ABS shells, etc. It uses non-contact printing, supports high-speed production lines, and is equipped with water-resistant and friction-resistant environmentally friendly inks to ensure clear marking on curved or concave and convex surfaces.

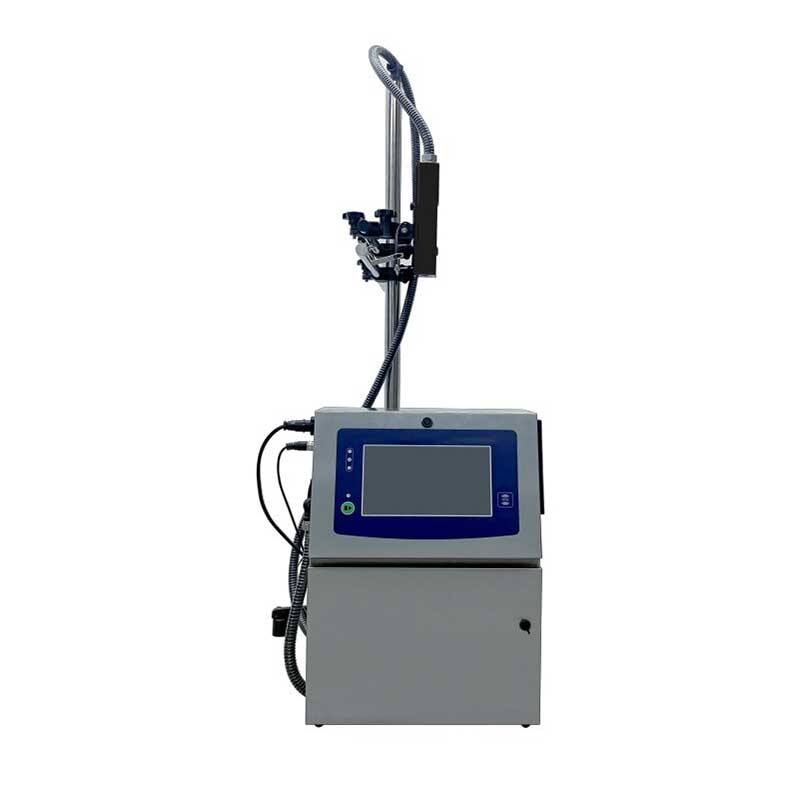

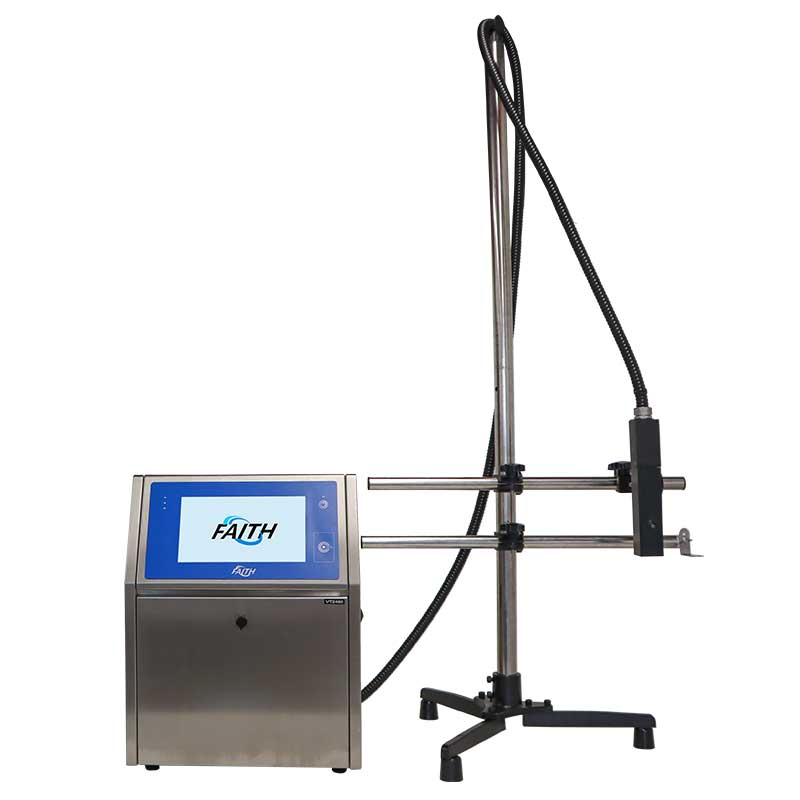

Continuous Inkjet Printing On Plastic

Download Brochures

Machine
Model	Model:FBP002	Model: FBP001
Material	Machine material 304 stainless steel
Printing Performance	1-5 lines 411M/min	1-5行 576M/min
Font Matrix	56L、76L、710L、98L、911L、1111L、1212L、1616L、2424L、3232L、1111B、1212B、1616B、2424B、32*32B
Printing Distance	3-30MM
Operating System	Embedded Linux security operating system
Print Content	Text, time, date, Log0, dynamic barcode/QR code, dynamic serial data, dynamic database (other content can be added as needed)
Supported Languages	More than 40 national languages (Chinese, English, Arabic, Danish, German, Italian, Korean, etc.)
Memory Storage	Network interface USB.RS232
Industrial Protection	IP55
Printhead	Tube 3M/6M Nozzle 40u, 50u, 60u, 75u	Tube 3M/6M Nozzle 40u, 50u, 60u, 75u,85u
Printing Direction	360° rotating nozzle
Temperature/ Humidity range	Temperature 0-45°C/Humidity 30-70%Rh
Power Parameters	Input 100-240V AC
