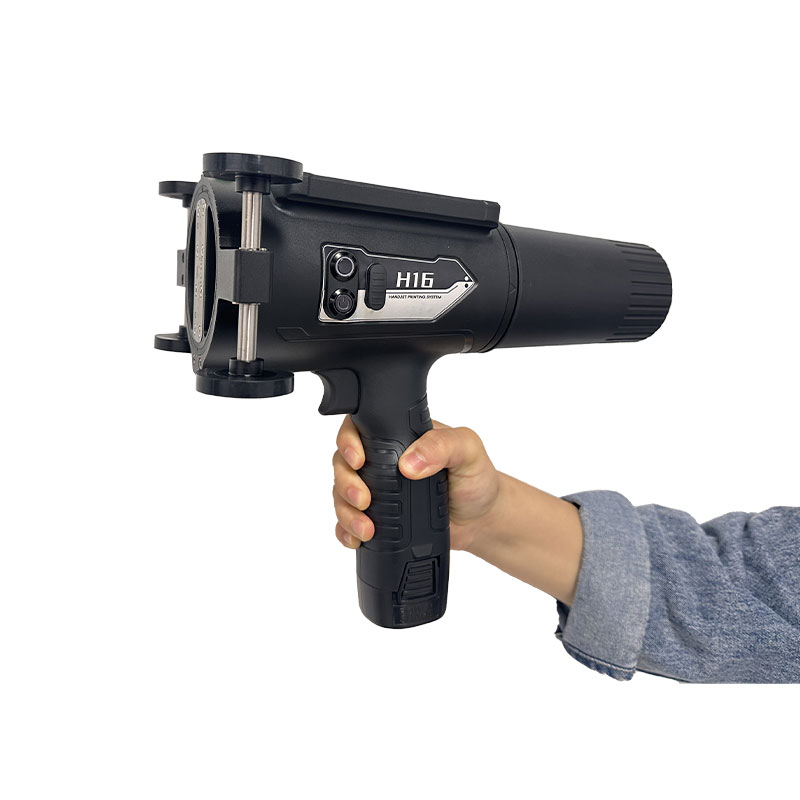

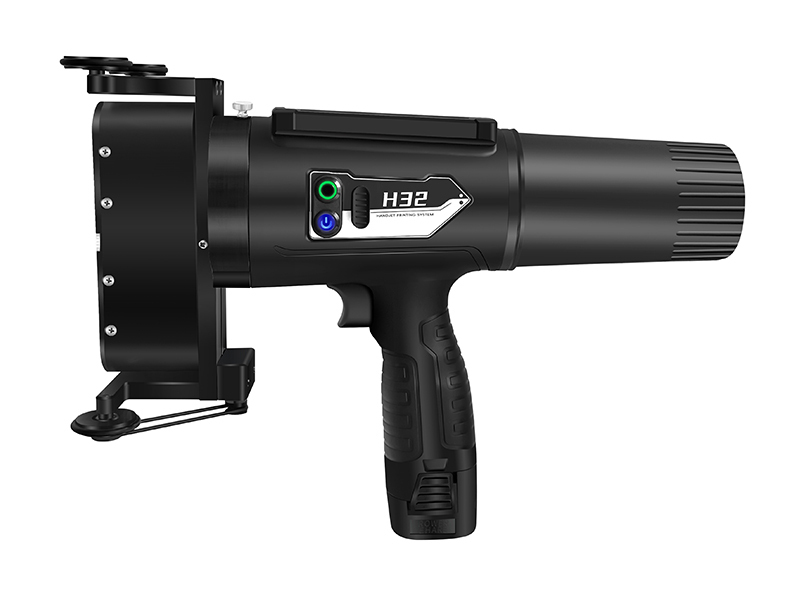

Large Character Handheld Inkjet Printer-FAITHLASER MARKING

Product Videos

Features

1 .Direct inkjet printing with built-in pressure pump and low-pressure air supply system,providing stable air pressure and low failure rate.

2.The control system is simple and reliable, making it easy to operate and maintain.

3.The ink supply system of the device is well-sealed, unaffected by the working environment,and does not cause ink blockage even after long-term use.

4.The machine has no easily worn parts, resulting in significantly lower maintenance costs compared to Cij inkjet printers.

Product Detail

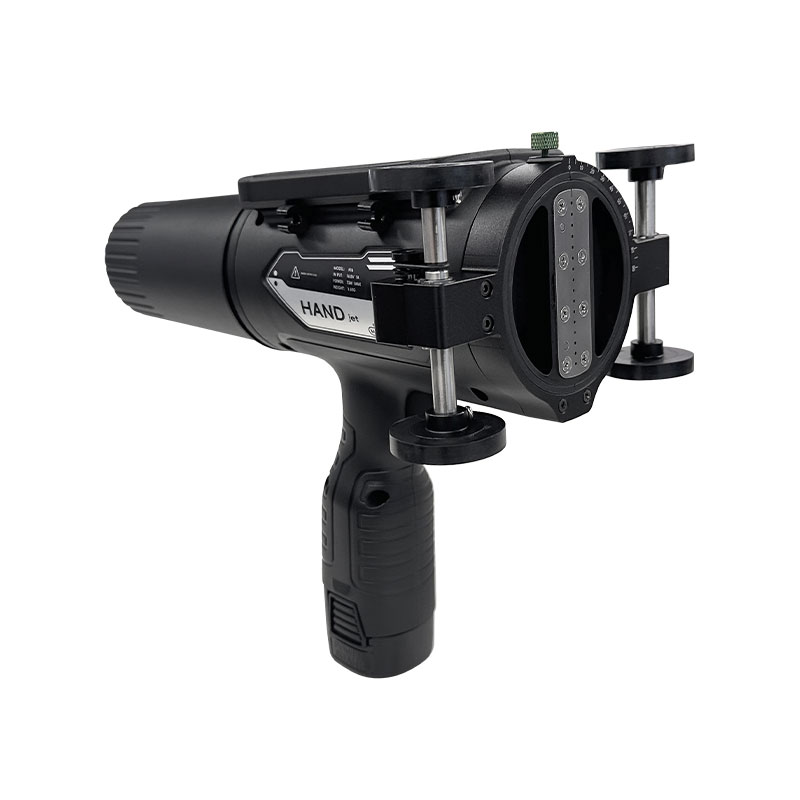

	Nozzle rotation lock mechanism Independently developed magnetic rotary encoder synchronizer
	Each wheel is secured with a set screw,allowing for adjustment of the wheel spacing.The four-wheel design facilitates pipe handling and is suitable for uneven surfaces

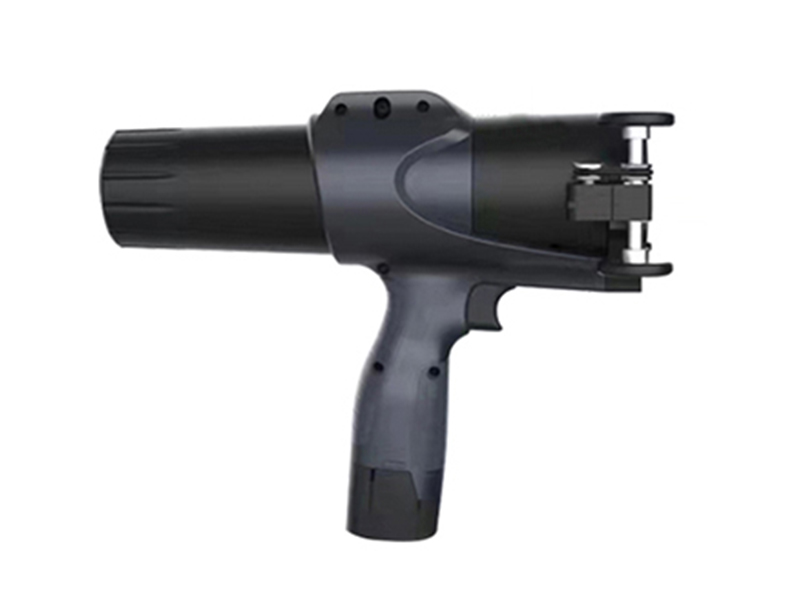

	Nozzle casing design The front face of the nozzle casing is designed with an inward curve to facilitate the rotation of the nozzle. The single-side protrusion on the nozzle end helps protect the nozzle. Reserved TYPE-C data port with a rubber plug cover for waterproof and dust proof protection.
	Detailed Design The nozzle allows for adjustable print height and is stable and durable,capable of withstanding acid and alkaline corrosion.

Software Features	Real-time date and time clock、Batch printing、Counting.Shift printing、Font inversion (upside down)、Horizontal flipping
Printing Graphics	Capable of printing logos, symbols, and more
Date Code	Supports century, year, month, day, hour, minute, and second
Printing Speed	Manual control

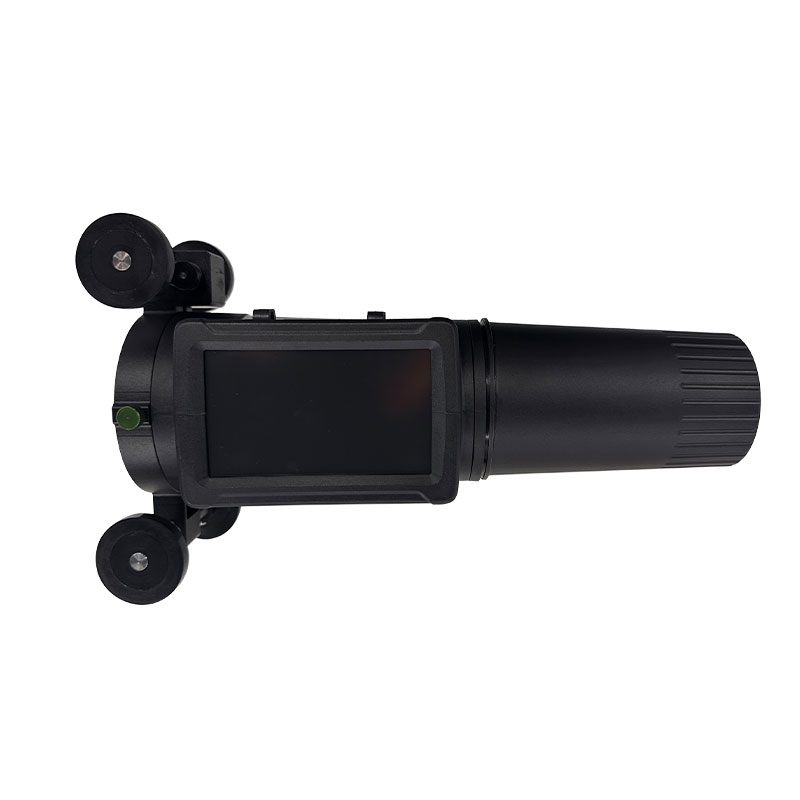

Screen Display	Displays all printing parameters clearly, with one-touch setting changes
Printing Direction	360-degree adjustable
Printing Material	Suitable for both permeable and non-permeable materials
Ink Types	Water-based ink (for permeable surfaces) or oil-based ink(for non-permeable surfaces)
Ink Colors	Available in multiple colors including black, red, blue, yellow, white, and others
Ink Supply	Built-in air pump with adjustable air pressure: 0.01-0.06 MPa
Charging Time	Approximately 4 hours
Operating Environment	Temperature range: 5°C to 45°C
Machine Weight	Approximately 1.5 kg
Machine Appearance	Integrated injection-molded body, wear-resistant and durable

Printing areas on permeable and non-permeable materials such as food, beverages, pipes, building materials, steel, wood, medicine, chemicals, cement, tires, carton packaging, steel, glass, woven bags, and painted surfaces. Code, production date, product batch number and other contents. The unique bio-proof, explosion-proof and waterproof design can meet the high standard requirements of various special industries such as food, chemical industry, building materials and so on. This inkjet coding equipment has stable quality and reliable performance.

Printing materials: metal, plastic, wood, aluminum, cartons, building materials and other materials. The surface printing content is rich: mainly used to print area codes, date batch numbers, counts, graphics, information combinations and other contents when packaging products.

Large Character Handheld Inkjet Printer

Download Brochures

Machine
Model	16 Dot Matrix	32 Dot Matrix
Software Features	Real-time date clock, print batch, count, shift, font upside down, left-right flip
Font Size	Height can be adjusted arbitrarily between 10-60MM, width can be adjusted arbitrarily	Height can be adjusted between 10-124MM, width can be adjusted
Printing Lines	Single line of Chinese characters and double lines of numbers or English	Print 4 lines of 75 dot matrix characters, 2 lines of 1616 dot matrix characters, 1 line of 32*32 dot matrix characters
Printing Direction	360° sprayable
Product Size	278*235mm	357*235mm
Machine Weight	About 1.5KG	About 1.5KG

Large Character Handheld Inkjet Printer
