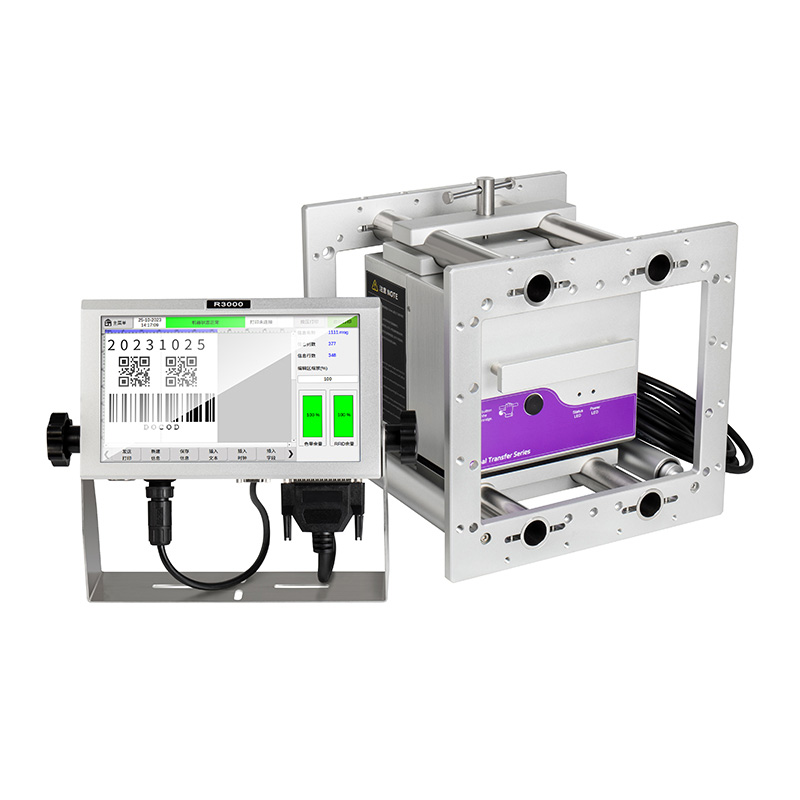

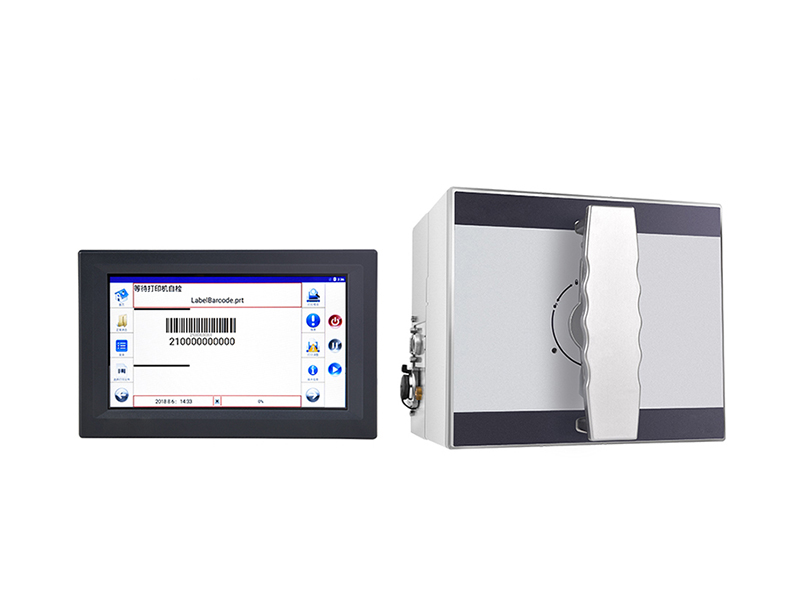

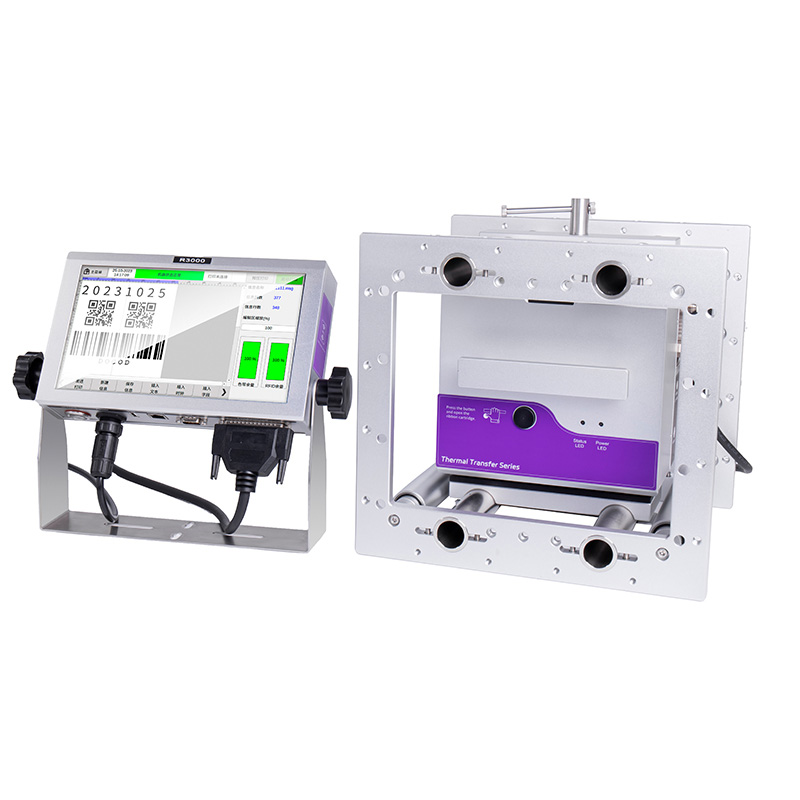

TTO Intelligent Thermal Transfer Coding Machine-FAITHLASER MARKING

Product Videos

Features

Extremely efficient

Printing speed up to 800 mm/s, excellent efficiency, meeting high-speed printing needs.

Easy to operate

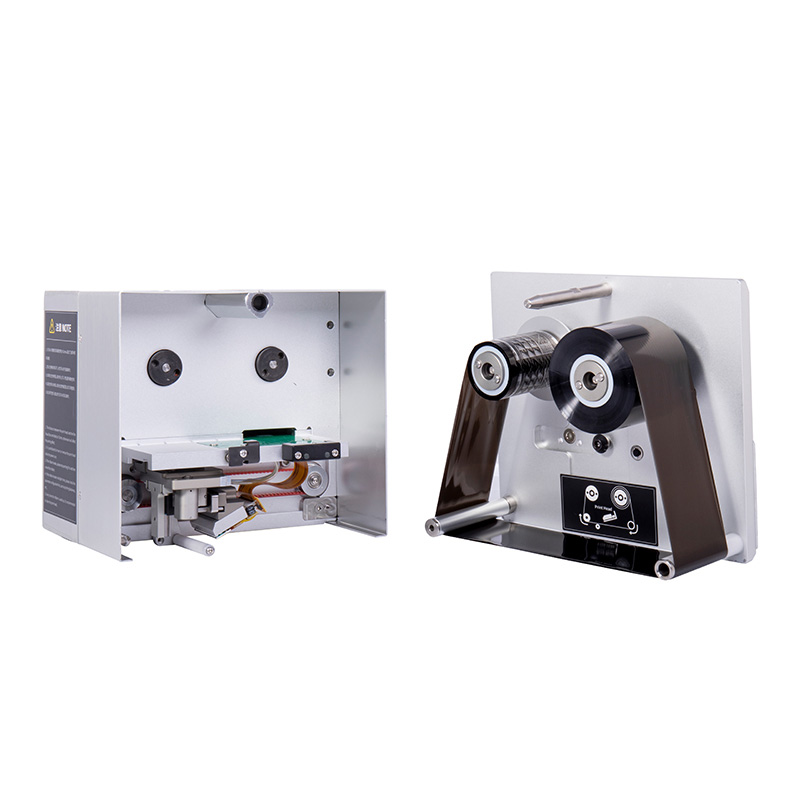

10-inch full-color touch screen, simple operation, support preview ribbon box quick replacement, automatic identification and adjustment, 1200 meters of large-capacity ribbon, reduce replacement frequency

Machine management

Print head usage statistics, intelligent reminder to replace the print head

Professional hardware

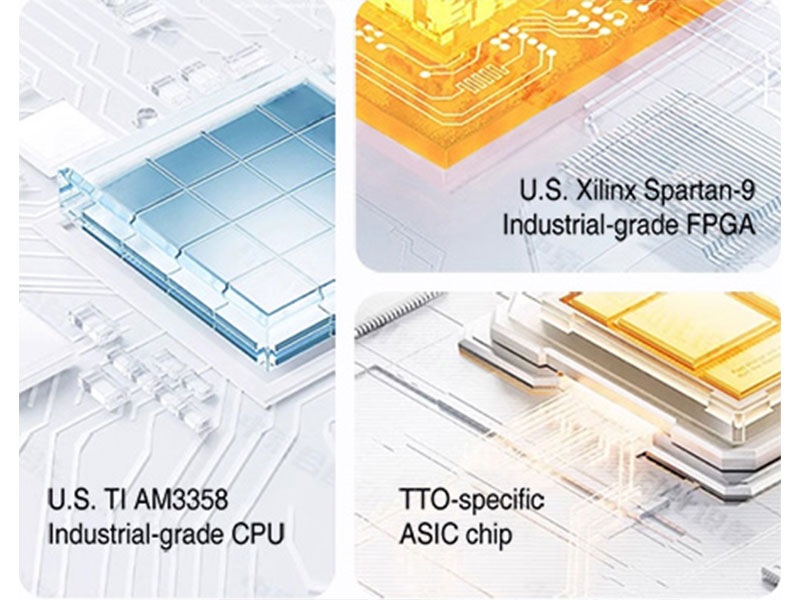

Self-developed PCBA motherboard, using industrial-grade high-performance CPU high-speed computing FPGA, anti-interference solid-state components and SMT patch technology

Human interaction

Consumables replacement reminder, broken belt reminder

Easily understand the working status

High-end manufacturing

Aviation-grade aluminum, CNC molding process

Industrial-grade standard body is sturdy and durable

Product Detail

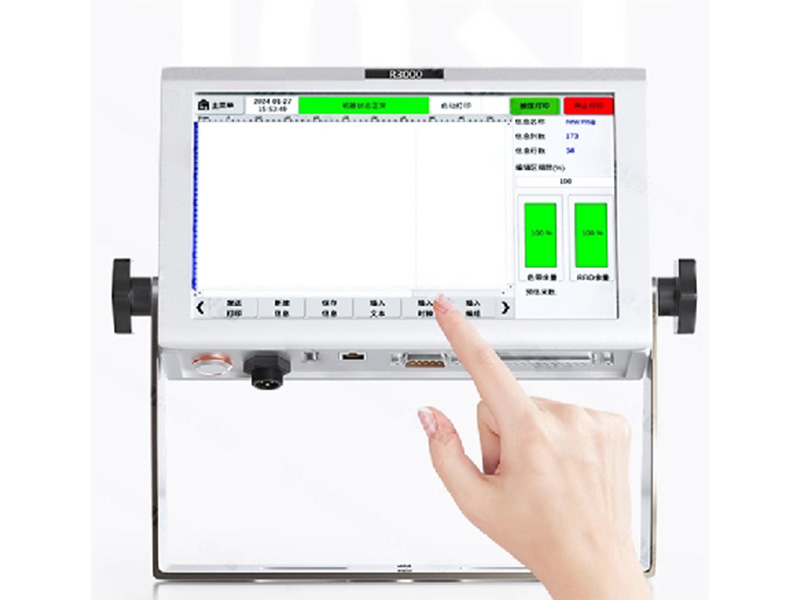

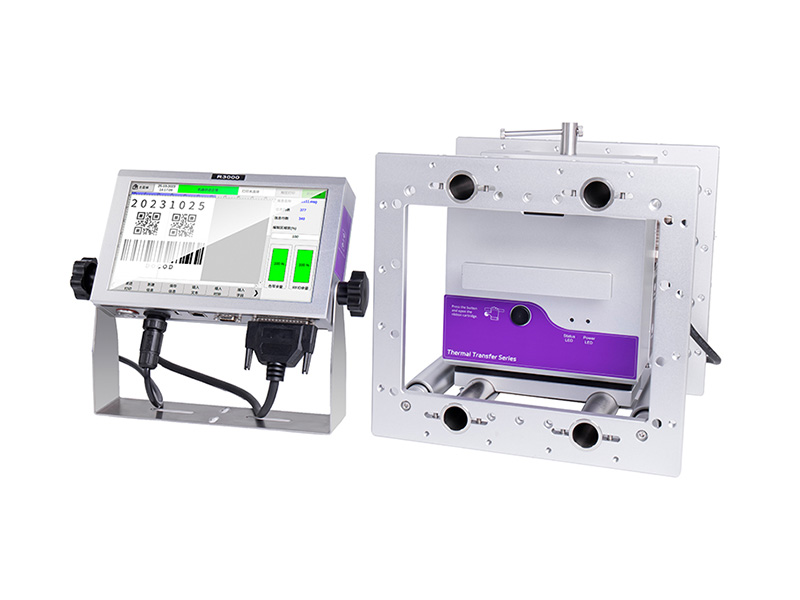

	10-inch smart touch screen online editing, ready to go. No need for a computer, more convenient operation
	300DPI resolution, two print widths to choose from, 32mm/53mm.

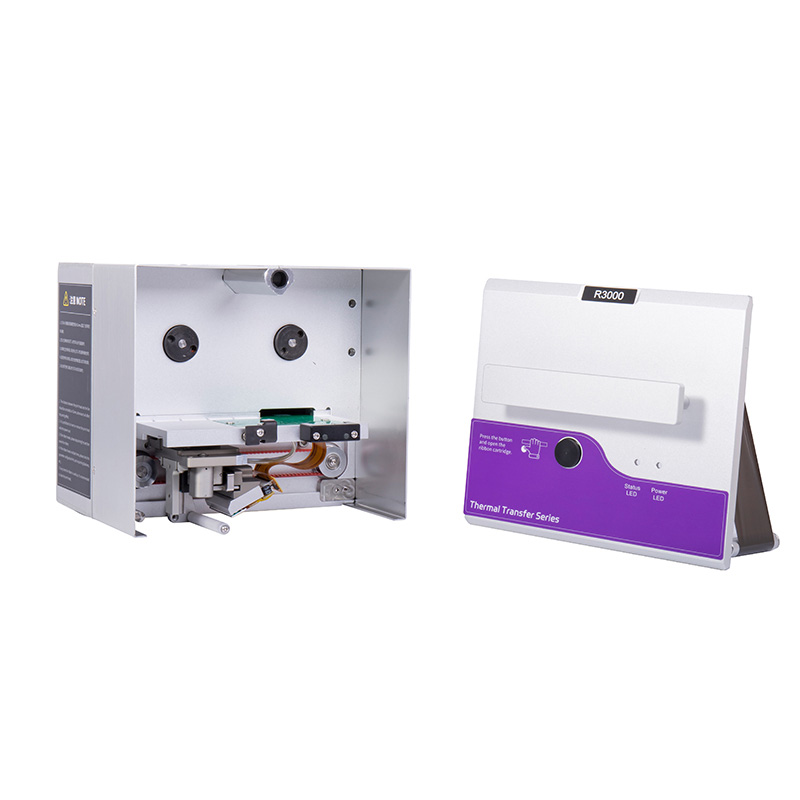

	Industrial-grade hardware inkjet printing production is more stable.Fully industrial-grade hardware ensures reliable and stable application in various complex working conditions

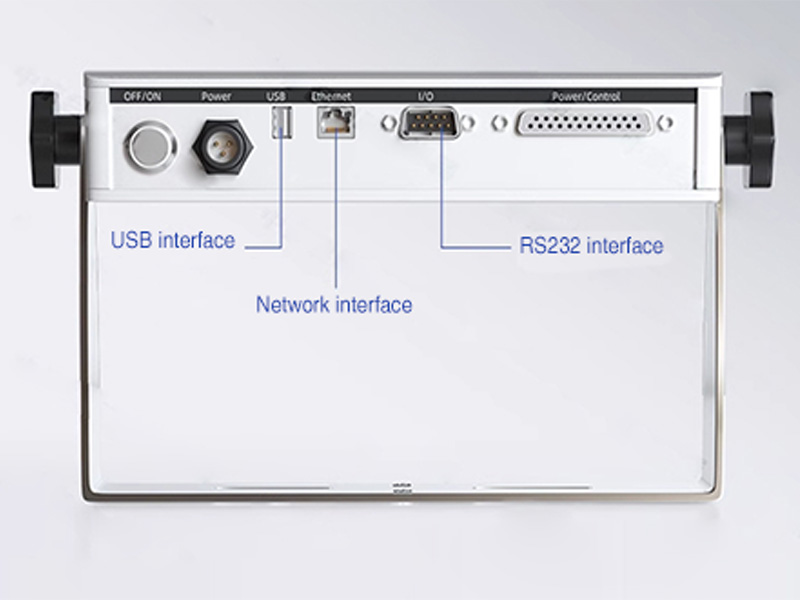

	Rich external interfaces support multiple communication protocols USB, RS232, TCP, IP network interface supports network remote centralized management and control

Model Number	R3032/R3053
Working Environment	Temperature: 0-45°C,Humidity: 30-70% RH
Power Supply	AC 110-230V 50/60HZ
Dimensions	Marking Machine: 224.8 x 216.8 x 182.5mm Controller:258155.452mm
Weight	Marking Machine: 7.5 kg, Controller: 2.4 kg
User Interface	10-inch Color Display, Industrial Touch Screen
Gas consumption	1.5-4.0 bar/22.5-60 psi

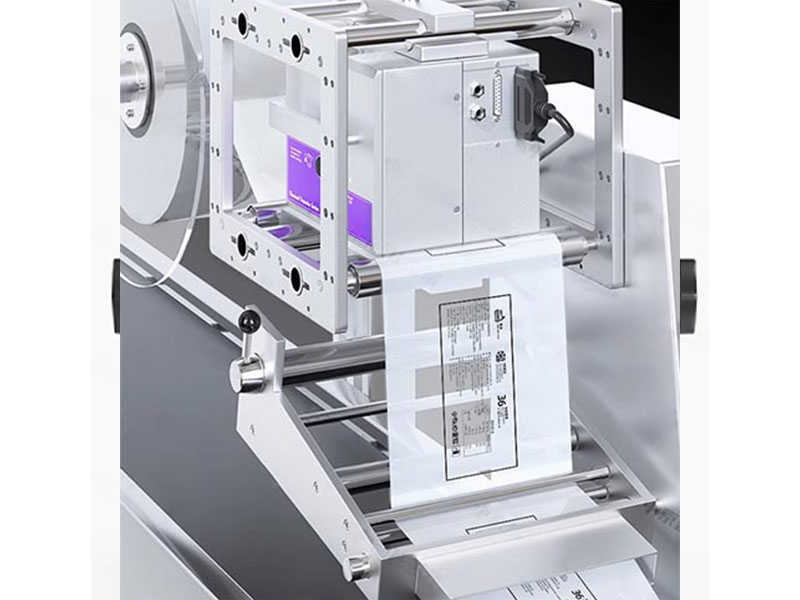

Material Type	High barrier film, stick pack, sealed bag, sealed pack, bag pack, metallized label, decorative label
Standard Communication	USB, RS232, TCP/IP network interface (supports remote centralized control and management through the network, and can be integrated with weighing machines, conveyor belts, pagers, packaging machines, ERP databases, drug supervision codes, and anti-counterfeiting traceability systems)
Working Made	Intermittent
Printing Mode	Thermal Transfer
Printing Distance	>0.1mm
Ribbon width	24/33/35/55 mm
Ribbon Length	400/600/800/1200m
Printing Area	32 x75 mm / 53 x 70 mm
Maximum Print Speed	Recommended: 200-350 mm/s (Maximum: 800 mm/s)
Minimum printing speed	Minimum Print Speed: 50 mm/s
Print Resolution	300dpi

TTO thermal transfer inkjet printer has rich printing content and is suitable for all walks of life. It can print text, graphic LOGO, multi-language, time and date, shift, serial number, QR code, barcode, GS1 code, TXT, CSV/xlsx documents on fast food, daily necessities, snacks and beverages, food and other products.

TTO Intelligent Thermal Transfer Coding Machine

Download Brochures

Machine
Model	FC53 / 32-Li	R3032/R3035
Working mode	53/32mm75mm(indirect type) 53/32mm100mm(continuous type)	Indirect
Print speed	20-600mm/s	50-800mm/s
Print resolution	300DPI
Machine weight	Printing device: <8kg; Controller: <5kg	Printing device: 7.5kg; Controller: <2.4kg
Work environment	Temperature 0-40℃ Humidity 10-90%Rh	Temperature 0-45℃ Humidity 30-70%Rh
Gas consumption	＜4 ml/print at 2.5bar	1.5-4.0 bar/22.5-60 psi
